Writes the Well-Known Text representation of a Geometry. More...

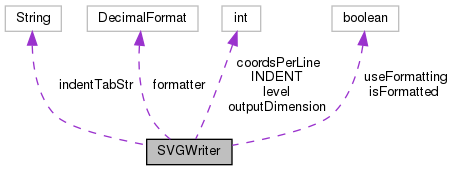

Collaboration diagram for SVGWriter:

Public Member Functions
	SVGWriter ()
	Creates a new SVGWriter with default settings. More...

String	write (Geometry geometry)
	Converts a `Geometry` to its Well-known Text representation. More...

void	write (Geometry geometry, Writer writer) throws IOException
	Converts a `Geometry` to its Well-known Text representation. More...

String	writeFormatted (Geometry geometry)
	Same as `write`, but with newlines and spaces to make the well-known text more readable. More...

void	writeFormatted (Geometry geometry, Writer writer) throws IOException
	Same as `write`, but with newlines and spaces to make the well-known text more readable. More...

Static Public Member Functions
static String	stringOfChar (char ch, int count)
	Returns a `String` of repeated characters. More...

Private Member Functions
void	writeFormatted (Geometry geometry, boolean useFormatting, Writer writer) throws IOException
	Converts a `Geometry` to its Well-known Text representation. More...

void	appendGeometryTaggedText (Geometry geometry, int level, Writer writer) throws IOException
	Converts a `Geometry` to <Geometry Tagged Text> format, then appends it to the writer. More...

void	appendPointTaggedText (Coordinate coordinate, int level, Writer writer, PrecisionModel precisionModel) throws IOException
	Converts a `Coordinate` to <Point Tagged Text> format, then appends it to the writer. More...

void	appendLineStringTaggedText (LineString lineString, int level, Writer writer) throws IOException
	Converts a `LineString` to <LineString Tagged Text> format, then appends it to the writer. More...

void	appendLinearRingTaggedText (LinearRing linearRing, int level, Writer writer) throws IOException
	Converts a `LinearRing` to <LinearRing Tagged Text> format, then appends it to the writer. More...

void	appendPolygon (Polygon polygon, int level, Writer writer) throws IOException
	Converts a `Polygon` to <Polygon Tagged Text> format, then appends it to the writer. More...

void	appendMultiPointTaggedText (MultiPoint multipoint, int level, Writer writer) throws IOException
	Converts a `MultiPoint` to <MultiPoint Tagged Text> format, then appends it to the writer. More...

void	appendMultiLineStringTaggedText (MultiLineString multiLineString, int level, Writer writer) throws IOException
	Converts a `MultiLineString` to <MultiLineString Tagged Text> format, then appends it to the writer. More...

void	appendMultiPolygonTaggedText (MultiPolygon multiPolygon, int level, Writer writer) throws IOException
	Converts a `MultiPolygon` to <MultiPolygon Tagged Text> format, then appends it to the writer. More...

void	appendGeometryCollectionTaggedText (GeometryCollection geometryCollection, int level, Writer writer) throws IOException
	Converts a `GeometryCollection` to <GeometryCollection Tagged Text> format, then appends it to the writer. More...

void	appendPoint (Coordinate coordinate, int level, Writer writer, PrecisionModel precisionModel) throws IOException
	Converts a `Coordinate` to <Point Text> format, then appends it to the writer. More...

void	appendCoordinate (CoordinateSequence seq, int i, Writer writer) throws IOException
	Appends the i'th coordinate from the sequence to the writer. More...

void	appendCoordinate (Coordinate coordinate, Writer writer) throws IOException
	Converts a `Coordinate` to `<Point>` format, then appends it to the writer. More...

String	writeNumber (double d)
	Converts a `double` to a `String`, not in scientific notation. More...

void	appendSequencePath (CoordinateSequence seq, int level, boolean doIndent, Writer writer) throws IOException
	Converts a `LineString` to <LineString Text> format, then appends it to the writer. More...

void	appendSequencePoints (CoordinateSequence seq, int level, boolean doIndent, Writer writer) throws IOException

void	appendLineString (LineString lineString, int level, boolean doIndent, Writer writer) throws IOException
	Converts a `LineString` to <LineString Text> format, then appends it to the writer. More...

void	appendPolygonPolygon (Polygon polygon, int level, boolean indentFirst, Writer writer) throws IOException
	Converts a `Polygon` to <Polygon Text> format, then appends it to the writer. More...

void	appendPolygonPath (Polygon polygon, int level, boolean indentFirst, Writer writer) throws IOException

void	appendPathStart (boolean useFillRule, Writer writer) throws IOException

void	appendPathEnd (Writer writer) throws IOException

void	appendMultiPointText (MultiPoint multiPoint, int level, Writer writer) throws IOException
	Converts a `MultiPoint` to <MultiPoint Text> format, then appends it to the writer. More...

void	appendMultiLineStringText (MultiLineString multiLineString, int level, boolean indentFirst, Writer writer) throws IOException
	Converts a `MultiLineString` to <MultiLineString Text> format, then appends it to the writer. More...

void	appendMultiPolygonText (MultiPolygon multiPolygon, int level, Writer writer) throws IOException
	Converts a `MultiPolygon` to <MultiPolygon Text> format, then appends it to the writer. More...

void	appendGeometryCollectionText (GeometryCollection geometryCollection, int level, Writer writer) throws IOException
	Converts a `GeometryCollection` to <GeometryCollectionText> format, then appends it to the writer. More...

void	indentCoords (int coordIndex, int level, Writer writer) throws IOException

void	indent (int level, Writer writer) throws IOException

Static Private Member Functions
static DecimalFormat	createFormatter (PrecisionModel precisionModel)
	Creates the `DecimalFormat` used to write `double`s with a sufficient number of decimal places. More...

Private Attributes
int	outputDimension = 2

DecimalFormat	formatter

boolean	isFormatted = false

boolean	useFormatting = false

int	level = 0

int	coordsPerLine = -1

String	indentTabStr = " "

Static Private Attributes
static final int	INDENT = 2

Detailed Description

Writes the Well-Known Text representation of a Geometry.

The Well-Known Text format is defined in the OGC Simple Features Specification for SQL. See WKTReader for a formal specification of the format syntax.

The WKTWriter outputs coordinates rounded to the precision model. Only the maximum number of decimal places necessary to represent the ordinates to the required precision will be output.

The SFS WKT spec does not define a special tag for LinearRings. Under the spec, rings are output as LINESTRINGs. In order to allow precisely specifying constructed geometries, JTS also supports a non-standard LINEARRING tag which is used to output LinearRings.

Version: 1.7

See also: WKTReader

Constructor & Destructor Documentation

◆ SVGWriter()

SVGWriter ( )

Creates a new SVGWriter with default settings.

97 {

98 }

Member Function Documentation

◆ appendCoordinate() [1/2]

void appendCoordinate	(	CoordinateSequence	seq,
		int	i,
		Writer	writer
	)		throws IOException

private

Appends the i'th coordinate from the sequence to the writer.

Parameters

seq	the `CoordinateSequence` to process
i	the index of the coordinate to write
writer	the output writer to append to

References SVGWriter.writeNumber().

Referenced by SVGWriter.appendSequencePath(), and SVGWriter.appendSequencePoints().

   {
     writer.write(writeNumber(seq.getX(i)) + "," + writeNumber(seq.getY(i)));
   }

◆ appendCoordinate() [2/2]

void appendCoordinate	(	Coordinate	coordinate,
		Writer	writer
	)		throws IOException

private

Converts a Coordinate to <Point> format, then appends it to the writer.

Parameters

coordinate	the `Coordinate` to process
writer	the output writer to append to

References SVGWriter.writeNumber().

   {
     writer.write(writeNumber(coordinate.x) + " " + writeNumber(coordinate.y));
     if (outputDimension >= 3 && ! Double.isNaN(coordinate.z)) {
       writer.write(" ");
       writer.write(writeNumber(coordinate.z));
     }
   }

◆ appendGeometryCollectionTaggedText()

void appendGeometryCollectionTaggedText	(	GeometryCollection	geometryCollection,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a GeometryCollection to <GeometryCollection Tagged Text> format, then appends it to the writer.

Parameters

geometryCollection	the `GeometryCollection` to process
writer	the output writer to append to

References SVGWriter.appendGeometryCollectionText().

Referenced by SVGWriter.appendGeometryTaggedText().

   {
     appendGeometryCollectionText(geometryCollection, level, writer);
   }

◆ appendGeometryCollectionText()

void appendGeometryCollectionText	(	GeometryCollection	geometryCollection,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a GeometryCollection to <GeometryCollectionText> format, then appends it to the writer.

Parameters

geometryCollection	the `GeometryCollection` to process
writer	the output writer to append to

References SVGWriter.appendGeometryTaggedText(), and SVGWriter.level.

Referenced by SVGWriter.appendGeometryCollectionTaggedText().

   {
       int level2 = level;
       for (int i = 0; i < geometryCollection.getNumGeometries(); i++) {
         if (i > 0) {
           level2 = level + 1;
         }
         appendGeometryTaggedText(geometryCollection.getGeometryN(i), level2, writer);
       }
   }

◆ appendGeometryTaggedText()

void appendGeometryTaggedText	(	Geometry	geometry,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a Geometry to <Geometry Tagged Text> format, then appends it to the writer.

Parameters

geometry	the `Geometry` to process
writer	the output writer to append to

References SVGWriter.appendGeometryCollectionTaggedText(), SVGWriter.appendLinearRingTaggedText(), SVGWriter.appendLineStringTaggedText(), SVGWriter.appendMultiLineStringTaggedText(), SVGWriter.appendMultiPointTaggedText(), SVGWriter.appendMultiPolygonTaggedText(), SVGWriter.appendPointTaggedText(), SVGWriter.appendPolygon(), SVGWriter.indent(), and SVGWriter.level.

Referenced by SVGWriter.appendGeometryCollectionText(), and SVGWriter.writeFormatted().

   {
     indent(level, writer);

     if (geometry instanceof Point) {
       Point point = (Point) geometry;
       appendPointTaggedText(point.getCoordinate(), level, writer, point.getPrecisionModel());
     }
     else if (geometry instanceof LinearRing) {
       appendLinearRingTaggedText((LinearRing) geometry, level, writer);
     }
     else if (geometry instanceof LineString) {
       appendLineStringTaggedText((LineString) geometry, level, writer);
     }
     else if (geometry instanceof Polygon) {
       appendPolygon((Polygon) geometry, level, writer);
     }
     else if (geometry instanceof MultiPoint) {
       appendMultiPointTaggedText((MultiPoint) geometry, level, writer);
     }
     else if (geometry instanceof MultiLineString) {
       appendMultiLineStringTaggedText((MultiLineString) geometry, level, writer);
     }
     else if (geometry instanceof MultiPolygon) {
       appendMultiPolygonTaggedText((MultiPolygon) geometry, level, writer);
     }
     else if (geometry instanceof GeometryCollection) {
       appendGeometryCollectionTaggedText((GeometryCollection) geometry, level, writer);
     }
     else {
       Assert.shouldNeverReachHere("Unsupported Geometry implementation:"
            + geometry.getClass());
     }


   }

◆ appendLinearRingTaggedText()

void appendLinearRingTaggedText	(	LinearRing	linearRing,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a LinearRing to <LinearRing Tagged Text> format, then appends it to the writer.

Parameters

linearRing	the `LinearRing` to process
writer	the output writer to append to

References SVGWriter.appendLineString().

Referenced by SVGWriter.appendGeometryTaggedText().

   {
     appendLineString(linearRing, level, false, writer);
   }

◆ appendLineString()

void appendLineString	(	LineString	lineString,
		int	level,
		boolean	doIndent,
		Writer	writer
	)		throws IOException

private

Converts a LineString to <LineString Text> format, then appends it to the writer.

Parameters

lineString	the `LineString` to process
writer	the output writer to append to

References SVGWriter.appendSequencePoints(), SVGWriter.indent(), and SVGWriter.level.

Referenced by SVGWriter.appendLinearRingTaggedText(), SVGWriter.appendLineStringTaggedText(), and SVGWriter.appendMultiLineStringText().

   {
       if (doIndent) indent(level, writer);
       writer.write("<polyline fill='none' points='");
       appendSequencePoints(lineString.getCoordinateSequence(), level, doIndent, writer);
       writer.write("'/>\n");
   }

◆ appendLineStringTaggedText()

void appendLineStringTaggedText	(	LineString	lineString,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a LineString to <LineString Tagged Text> format, then appends it to the writer.

Parameters

lineString	the `LineString` to process
writer	the output writer to append to

References SVGWriter.appendLineString().

Referenced by SVGWriter.appendGeometryTaggedText().

   {
     appendLineString(lineString, level, false, writer);
   }

◆ appendMultiLineStringTaggedText()

void appendMultiLineStringTaggedText	(	MultiLineString	multiLineString,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a MultiLineString to <MultiLineString Tagged Text> format, then appends it to the writer.

Parameters

multiLineString	the `MultiLineString` to process
writer	the output writer to append to

References SVGWriter.appendMultiLineStringText().

Referenced by SVGWriter.appendGeometryTaggedText().

   {
     appendMultiLineStringText(multiLineString, level, false, writer);
   }

◆ appendMultiLineStringText()

void appendMultiLineStringText	(	MultiLineString	multiLineString,
		int	level,
		boolean	indentFirst,
		Writer	writer
	)		throws IOException

private

Converts a MultiLineString to <MultiLineString Text> format, then appends it to the writer.

Parameters

multiLineString	the `MultiLineString` to process
writer	the output writer to append to

References SVGWriter.appendLineString(), and SVGWriter.level.

Referenced by SVGWriter.appendMultiLineStringTaggedText().

   {
       int level2 = level;
       boolean doIndent = indentFirst;
       for (int i = 0; i < multiLineString.getNumGeometries(); i++) {
         if (i > 0) {
           level2 = level + 1;
           doIndent = true;
         }
         appendLineString((LineString) multiLineString.getGeometryN(i), level2, doIndent, writer);
       }
   }

◆ appendMultiPointTaggedText()

void appendMultiPointTaggedText	(	MultiPoint	multipoint,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a MultiPoint to <MultiPoint Tagged Text> format, then appends it to the writer.

Parameters

multipoint	the `MultiPoint` to process
writer	the output writer to append to

References SVGWriter.appendMultiPointText().

Referenced by SVGWriter.appendGeometryTaggedText().

   {
     appendMultiPointText(multipoint, level, writer);
   }

◆ appendMultiPointText()

void appendMultiPointText	(	MultiPoint	multiPoint,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a MultiPoint to <MultiPoint Text> format, then appends it to the writer.

Parameters

multiPoint	the `MultiPoint` to process
writer	the output writer to append to

References SVGWriter.appendPoint(), and SVGWriter.level.

Referenced by SVGWriter.appendMultiPointTaggedText().

   {
     if (multiPoint.isEmpty()) {
       writer.write(" ");
     }
     else {
       int level2 = level;
       for (int i = 0; i < multiPoint.getNumGeometries(); i++) {
         if (i > 0) {
           level2 = level + 1;
         }
         appendPoint(multiPoint.getGeometryN(i).getCoordinate(), level2, writer, multiPoint.getPrecisionModel());
       }
     }
   }

◆ appendMultiPolygonTaggedText()

void appendMultiPolygonTaggedText	(	MultiPolygon	multiPolygon,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a MultiPolygon to <MultiPolygon Tagged Text> format, then appends it to the writer.

Parameters

multiPolygon	the `MultiPolygon` to process
writer	the output writer to append to

References SVGWriter.appendMultiPolygonText().

Referenced by SVGWriter.appendGeometryTaggedText().

   {
     appendMultiPolygonText(multiPolygon, level, writer);
   }

◆ appendMultiPolygonText()

void appendMultiPolygonText	(	MultiPolygon	multiPolygon,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a MultiPolygon to <MultiPolygon Text> format, then appends it to the writer.

Parameters

multiPolygon	the `MultiPolygon` to process
writer	the output writer to append to

References SVGWriter.appendPolygon(), and SVGWriter.level.

Referenced by SVGWriter.appendMultiPolygonTaggedText().

   {
       int level2 = level;
       boolean doIndent = false;
       for (int i = 0; i < multiPolygon.getNumGeometries(); i++) {
         if (i > 0) {
           level2 = level + 1;
           doIndent = true;
         }
         appendPolygon((Polygon) multiPolygon.getGeometryN(i), level2, writer);
       }
   }

◆ appendPathEnd()

void appendPathEnd ( Writer writer ) throws IOException

private

                                                                {
     writer.write("' />\n");
   }

◆ appendPathStart()

void appendPathStart	(	boolean	useFillRule,
		Writer	writer
	)		throws IOException

private

                                                                                       {
     String fillRule = useFillRule ? "fill-rule='evenodd' " :  "";
     writer.write("<path " + fillRule + "d='");
   }

◆ appendPoint()

void appendPoint	(	Coordinate	coordinate,
		int	level,
		Writer	writer,
		PrecisionModel	precisionModel
	)		throws IOException

private

Converts a Coordinate to <Point Text> format, then appends it to the writer.

Parameters

coordinate	the `Coordinate` to process
writer	the output writer to append to
precisionModel	the `PrecisionModel` to use to convert from a precise coordinate to an external coordinate

Referenced by SVGWriter.appendMultiPointText(), and SVGWriter.appendPointTaggedText().

   {
     writer.write("<circle cx='" + coordinate.x + "' cy='" + coordinate.y + "' r='1' />\n");
   }

◆ appendPointTaggedText()

void appendPointTaggedText	(	Coordinate	coordinate,
		int	level,
		Writer	writer,
		PrecisionModel	precisionModel
	)		throws IOException

private

Converts a Coordinate to <Point Tagged Text> format, then appends it to the writer.

Parameters

coordinate	the `Coordinate` to process
writer	the output writer to append to
precisionModel	the `PrecisionModel` to use to convert from a precise coordinate to an external coordinate

References SVGWriter.appendPoint().

Referenced by SVGWriter.appendGeometryTaggedText().

   {
     appendPoint(coordinate, level, writer, precisionModel);
   }

◆ appendPolygon()

void appendPolygon	(	Polygon	polygon,
		int	level,
		Writer	writer
	)		throws IOException

private

Converts a Polygon to <Polygon Tagged Text> format, then appends it to the writer.

Parameters

polygon	the `Polygon` to process
writer	the output writer to append to

References SVGWriter.appendPolygonPath(), and SVGWriter.appendPolygonPolygon().

Referenced by SVGWriter.appendGeometryTaggedText(), and SVGWriter.appendMultiPolygonText().

   {
     if (polygon.getNumInteriorRing() == 0) {
       appendPolygonPolygon(polygon, level, false, writer);
     }
     else {
       appendPolygonPath(polygon, level, false, writer);
     }
   }

◆ appendPolygonPath()

void appendPolygonPath	(	Polygon	polygon,
		int	level,
		boolean	indentFirst,
		Writer	writer
	)		throws IOException

private

References SVGWriter.appendSequencePath(), SVGWriter.indent(), and SVGWriter.level.

Referenced by SVGWriter.appendPolygon().

     {
         if (indentFirst) indent(level, writer);
         writer.write("<path fill-rule='evenodd' d='");
         appendSequencePath(polygon.getExteriorRing().getCoordinateSequence(), level, false, writer);
         for (int i = 0; i < polygon.getNumInteriorRing(); i++) {
           writer.write(" ");
           appendSequencePath(polygon.getInteriorRingN(i).getCoordinateSequence(), level + 1, true, writer);
         }
         writer.write("' />\n");
     }

◆ appendPolygonPolygon()

void appendPolygonPolygon	(	Polygon	polygon,
		int	level,
		boolean	indentFirst,
		Writer	writer
	)		throws IOException

private

Converts a Polygon to <Polygon Text> format, then appends it to the writer.

Parameters

polygon	the `Polygon` to process
writer	the output writer to append to

References SVGWriter.appendSequencePoints(), SVGWriter.indent(), and SVGWriter.level.

Referenced by SVGWriter.appendPolygon().

     {
         if (indentFirst) indent(level, writer);
         writer.write("<polygon points='");
         appendSequencePoints(polygon.getExteriorRing().getCoordinateSequence(), level, false, writer);
         writer.write("' />\n");
     }

◆ appendSequencePath()

void appendSequencePath	(	CoordinateSequence	seq,
		int	level,
		boolean	doIndent,
		Writer	writer
	)		throws IOException

private

Converts a LineString to <LineString Text> format, then appends it to the writer.

Parameters

lineString	the `LineString` to process
writer	the output writer to append to

References SVGWriter.appendCoordinate(), and SVGWriter.indent().

Referenced by SVGWriter.appendPolygonPath().

     {
       if (seq.size() == 0) {
         //writer.write("EMPTY");
       }
       else {
         if (doIndent) indent(level, writer);
         for (int i = 0; i < seq.size(); i++) {
           writer.write(" " + ((i == 0) ? "M" : "L"));
           if (i > 0) {
             if (coordsPerLine > 0
                 && i % coordsPerLine == 0) {
               indent(level + 1, writer);
             }
           }
           appendCoordinate(seq, i, writer);
         }
       }
     }

◆ appendSequencePoints()

void appendSequencePoints	(	CoordinateSequence	seq,
		int	level,
		boolean	doIndent,
		Writer	writer
	)		throws IOException

private

References SVGWriter.appendCoordinate(), and SVGWriter.indent().

Referenced by SVGWriter.appendLineString(), and SVGWriter.appendPolygonPolygon().

     {
       if (seq.size() == 0) {
         //writer.write("EMPTY");
       }
       else {
         if (doIndent) indent(level, writer);
         for (int i = 0; i < seq.size(); i++) {
           writer.write(" ");
           if (i > 0) {
             if (coordsPerLine > 0
                 && i % coordsPerLine == 0) {
               indent(level + 1, writer);
             }
           }
           appendCoordinate(seq, i, writer);
         }
       }
     }

◆ createFormatter()

static DecimalFormat createFormatter ( PrecisionModel precisionModel )

staticprivate

Creates the DecimalFormat used to write doubles with a sufficient number of decimal places.

Parameters

precisionModel the PrecisionModel used to determine the number of decimal places to write.

Returns: a DecimalFormat that write double s without scientific notation.

References SVGWriter.stringOfChar().

Referenced by SVGWriter.writeFormatted().

                                                                               {
     // the default number of decimal places is 16, which is sufficient
     // to accomodate the maximum precision of a double.
     int decimalPlaces = precisionModel.getMaximumSignificantDigits();
     // specify decimal separator explicitly to avoid problems in other locales
     DecimalFormatSymbols symbols = new DecimalFormatSymbols();
     symbols.setDecimalSeparator('.');
     String fmtString = "0" + (decimalPlaces > 0 ? "." : "")
                  +  stringOfChar('#', decimalPlaces);
     return new DecimalFormat(fmtString, symbols);
   }

◆ indent()

void indent	(	int	level,
		Writer	writer
	)		throws IOException

private

References SVGWriter.level.

Referenced by SVGWriter.appendGeometryTaggedText(), SVGWriter.appendLineString(), SVGWriter.appendPolygonPath(), SVGWriter.appendPolygonPolygon(), SVGWriter.appendSequencePath(), SVGWriter.appendSequencePoints(), and SVGWriter.indentCoords().

   {
     if (! useFormatting || level <= 0)
       return;
     writer.write("\n");
     for (int i = 0; i < level; i++) {
       writer.write(indentTabStr);
     }
   }

◆ indentCoords()

void indentCoords	(	int	coordIndex,
		int	level,
		Writer	writer
	)		throws IOException

private

References SVGWriter.indent().

   {
     if (coordsPerLine <= 0
         || coordIndex % coordsPerLine != 0)
       return;
     indent(level, writer);
   }

◆ stringOfChar()

static String stringOfChar	(	char	ch,
		int	count
	)

static

Returns a String of repeated characters.

Parameters

ch	the character to repeat
count	the number of times to repeat the character

Returns: a String of characters

Referenced by SVGWriter.createFormatter().

                                                         {
     StringBuffer buf = new StringBuffer();
     for (int i = 0; i < count; i++) {
       buf.append(ch);
     }
     return buf.toString();
   }

◆ write() [1/2]

String write ( Geometry geometry )

Converts a Geometry to its Well-known Text representation.

Parameters

geometry a Geometry to process

Returns: a <Geometry tagged="" text>=""> string (see the OpenGIS Simple Features Specification)

References SVGWriter.writeFormatted().

Referenced by AsSVG.operation().

   {
     Writer sw = new StringWriter();
     try {
       writeFormatted(geometry, isFormatted, sw);
     }
     catch (IOException ex) {
       Assert.shouldNeverReachHere();
     }
     return sw.toString();
   }

◆ write() [2/2]

void write	(	Geometry	geometry,
		Writer	writer
	)		throws IOException

Converts a Geometry to its Well-known Text representation.

Parameters

geometry a Geometry to process

References SVGWriter.writeFormatted().

   {
     writeFormatted(geometry, false, writer);
   }

◆ writeFormatted() [1/3]

String writeFormatted ( Geometry geometry )

Same as write, but with newlines and spaces to make the well-known text more readable.

Parameters

geometry a Geometry to process

Returns: a <Geometry tagged="" text>=""> string (see the OpenGIS Simple Features Specification), with newlines and spaces

Referenced by SVGWriter.write(), and SVGWriter.writeFormatted().

   {
     Writer sw = new StringWriter();
     try {
       writeFormatted(geometry, true, sw);
     }
     catch (IOException ex) {
       Assert.shouldNeverReachHere();
     }
     return sw.toString();
   }

◆ writeFormatted() [2/3]

void writeFormatted	(	Geometry	geometry,
		Writer	writer
	)		throws IOException

Same as write, but with newlines and spaces to make the well-known text more readable.

Parameters

geometry a Geometry to process

References SVGWriter.writeFormatted().

   {
     writeFormatted(geometry, true, writer);
   }

◆ writeFormatted() [3/3]

void writeFormatted	(	Geometry	geometry,
		boolean	useFormatting,
		Writer	writer
	)		throws IOException

private

Converts a Geometry to its Well-known Text representation.

Parameters

geometry a Geometry to process

References SVGWriter.appendGeometryTaggedText(), SVGWriter.createFormatter(), and SVGWriter.useFormatting.

   {
     this.useFormatting = useFormatting;
     formatter = createFormatter(geometry.getPrecisionModel());
     //writer.write("<g>\n");
     appendGeometryTaggedText(geometry, 0, writer);
     //writer.write("</g>\n");
   }

◆ writeNumber()

String writeNumber ( double d )

private

Converts a double to a String, not in scientific notation.

Parameters

d	the `double` to convert

Returns: the double as a String, not in scientific notation

Referenced by SVGWriter.appendCoordinate().

                                        {
     return formatter.format(d);
   }

Member Data Documentation

◆ coordsPerLine

int coordsPerLine = -1

private

◆ formatter

DecimalFormat formatter

private

◆ INDENT

final int INDENT = 2

staticprivate

◆ indentTabStr

String indentTabStr = " "

private

◆ isFormatted

boolean isFormatted = false

private

◆ level

int level = 0

private

Referenced by SVGWriter.appendGeometryCollectionText(), SVGWriter.appendGeometryTaggedText(), SVGWriter.appendLineString(), SVGWriter.appendMultiLineStringText(), SVGWriter.appendMultiPointText(), SVGWriter.appendMultiPolygonText(), SVGWriter.appendPolygonPath(), SVGWriter.appendPolygonPolygon(), and SVGWriter.indent().

◆ outputDimension

int outputDimension = 2

private

◆ useFormatting

boolean useFormatting = false

private

Referenced by SVGWriter.writeFormatted().

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SVGWriter()

Member Function Documentation

◆ appendCoordinate() [1/2]

◆ appendCoordinate() [2/2]

◆ appendGeometryCollectionTaggedText()

◆ appendGeometryCollectionText()

◆ appendGeometryTaggedText()

◆ appendLinearRingTaggedText()

◆ appendLineString()

◆ appendLineStringTaggedText()

◆ appendMultiLineStringTaggedText()

◆ appendMultiLineStringText()

◆ appendMultiPointTaggedText()

◆ appendMultiPointText()

◆ appendMultiPolygonTaggedText()

◆ appendMultiPolygonText()

◆ appendPathEnd()

◆ appendPathStart()

◆ appendPoint()

◆ appendPointTaggedText()

◆ appendPolygon()

◆ appendPolygonPath()

◆ appendPolygonPolygon()

◆ appendSequencePath()

◆ appendSequencePoints()

◆ createFormatter()

◆ indent()

◆ indentCoords()

◆ stringOfChar()

◆ write() [1/2]

◆ write() [2/2]

◆ writeFormatted() [1/3]

◆ writeFormatted() [2/3]

◆ writeFormatted() [3/3]

◆ writeNumber()

Member Data Documentation

◆ coordsPerLine

◆ formatter

◆ INDENT

◆ indentTabStr

◆ isFormatted

◆ level

◆ outputDimension

◆ useFormatting
