A lightweight class used to store coordinates on the 2-dimensional Cartesian plane. More...

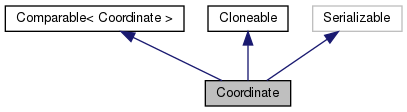

Inheritance diagram for Coordinate:

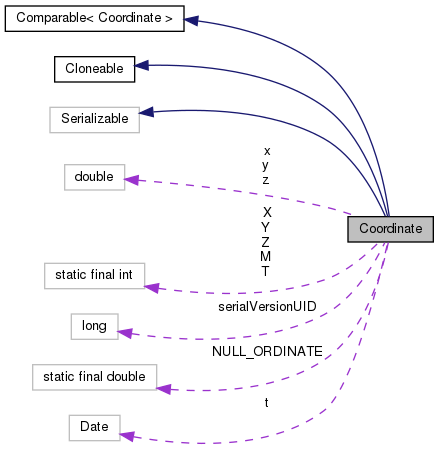

Collaboration diagram for Coordinate:

Classes
class	DimensionalComparator
	Compares two Coordinates, allowing for either a 2-dimensional or 3-dimensional comparison, and handling NaN values correctly. More...

Public Member Functions
	Coordinate (double x, double y, double z)
	Constructs a `Coordinate` at (x,y,z). More...

	Coordinate ()
	Constructs a `Coordinate` at (0,0,NaN). More...

	Coordinate (Coordinate c)
	Constructs a `Coordinate` having the same (x,y,z) values as `other`. More...

	Coordinate (double x, double y)
	Constructs a `Coordinate` at (x,y,NaN). More...

void	setCoordinate (Coordinate other)
	Sets this `Coordinate`s (x,y,z) values to that of `other`. More...

double	getX ()
	Retrieves the value of the X ordinate. More...

void	setX (double x)
	Sets the X ordinate value. More...

double	getY ()
	Retrieves the value of the Y ordinate. More...

Date	getT ()

void	setY (double y)
	Sets the Y ordinate value. More...

double	getZ ()
	Retrieves the value of the Z ordinate, if present. More...

void	setZ (double z)
	Sets the Z ordinate value. More...

void	setT (Date t)

void	setT (Long t)

double	getM ()
	Retrieves the value of the measure, if present. More...

void	setM (double m)
	Sets the measure value, if supported. More...

double	getOrdinate (int ordinateIndex)
	Gets the ordinate value for the given index. More...

void	setOrdinate (int ordinateIndex, double value)
	Sets the ordinate for the given index to a given value. More...

boolean	equals2D (Coordinate other)
	Returns whether the planar projections of the two `Coordinate`s are equal. More...

boolean	equals2D (Coordinate c, double tolerance)
	Tests if another Coordinate has the same values for the X and Y ordinates, within a specified tolerance value. More...

boolean	equals3D (Coordinate other)
	Tests if another coordinate has the same values for the X, Y and Z ordinates. More...

boolean	equalInZ (Coordinate c, double tolerance)
	Tests if another coordinate has the same value for Z, within a tolerance. More...

boolean	equals (Object other)
	Returns `true` if `other` has the same values for the x and y ordinates. More...

int	compareTo (Coordinate o)
	Compares this Coordinate with the specified Coordinate for order. More...

String	toString ()
	Returns a `String` of the form (x,y,z) . More...

Object	clone ()

Coordinate	copy ()
	Creates a copy of this Coordinate. More...

double	distance (Coordinate c)
	Computes the 2-dimensional Euclidean distance to another location. More...

double	distance3D (Coordinate c)
	Computes the 3-dimensional Euclidean distance to another location. More...

int	hashCode ()
	Gets a hashcode for this coordinate. More...

Static Public Member Functions
static int	hashCode (double x)
	Computes a hash code for a double value, using the algorithm from Joshua Bloch's book Effective Java" More...

Public Attributes
double	x
	The x-ordinate. More...

double	y
	The y-ordinate. More...

double	z
	The z-ordinate. More...

Date	t =null

Static Public Attributes
static final double	NULL_ORDINATE = Double.NaN
	The value used to indicate a null or missing ordinate value. More...

static final int	X = 0
	Standard ordinate index value for, where X is 0. More...

static final int	Y = 1
	Standard ordinate index value for, where Y is 1. More...

static final int	T = 4
	Standard ordinate index value for, where Y is 1. More...

static final int	Z = 2
	Standard ordinate index value for, where Z is 2. More...

static final int	M = 3
	Standard ordinate index value for, where M is 3. More...

Static Private Attributes
static final long	serialVersionUID = 6683108902428366910L

Detailed Description

A lightweight class used to store coordinates on the 2-dimensional Cartesian plane.

It is distinct from Point, which is a subclass of Geometry. Unlike objects of type Point (which contain additional information such as an envelope, a precision model, and spatial reference system information), a Coordinate only contains ordinate values and accessor methods.

Coordinates are two-dimensional points, with an additional Z-ordinate. If an Z-ordinate value is not specified or not defined, constructed coordinates have a Z-ordinate of NaN (which is also the value of NULL_ORDINATE). The standard comparison functions ignore the Z-ordinate. Apart from the basic accessor functions, JTS supports only specific operations involving the Z-ordinate.

Implementations may optionally support Z-ordinate and M-measure values as appropriate for a CoordinateSequence. Use of getZ() and getM() accessors, or getOrdinate(int) are recommended.

Version: 1.16

Constructor & Destructor Documentation

◆ Coordinate() [1/4]

Coordinate	(	double	x,
		double	y,
		double	z
	)

Constructs a Coordinate at (x,y,z).

Parameters

x	the x-ordinate
y	the y-ordinate
z	the z-ordinate

References Coordinate.x, Coordinate.y, and Coordinate.z.

                                                   {
     this.x = x;
     this.y = y;
     this.z = z;
   }

◆ Coordinate() [2/4]

Coordinate ( )

Constructs a Coordinate at (0,0,NaN).

Referenced by Coordinate.clone(), Coordinate.compareTo(), and Coordinate.copy().

                       {
     this(0.0, 0.0);
   }

◆ Coordinate() [3/4]

Coordinate ( Coordinate c )

Constructs a Coordinate having the same (x,y,z) values as other.

Parameters

c	the `Coordinate` to copy.

References Coordinate.getZ(), Coordinate.x, and Coordinate.y.

                                   {
     this(c.x, c.y, c.getZ());
   }

◆ Coordinate() [4/4]

Coordinate	(	double	x,
		double	y
	)

Constructs a Coordinate at (x,y,NaN).

Parameters

x	the x-value
y	the y-value

References Coordinate.NULL_ORDINATE, Coordinate.x, and Coordinate.y.

                                         {
     this(x, y, NULL_ORDINATE);
   }

Member Function Documentation

◆ clone()

Object clone ( )

References Coordinate.clone(), and Coordinate.Coordinate().

Referenced by Coordinate.clone().

                         {
     try {
       Coordinate coord = (Coordinate) super.clone();

       return coord; // return the clone
     } catch (CloneNotSupportedException e) {
       Assert.shouldNeverReachHere(
           "this shouldn't happen because this class is Cloneable");

       return null;
     }
   }

◆ compareTo()

int compareTo ( Coordinate o )

Compares this Coordinate with the specified Coordinate for order.

This method ignores the z value when making the comparison. Returns:

-1 : this.x < other.x || ((this.x == other.x) && (this.y < other.y))
0 : this.x == other.x && this.y = other.y
1 : this.x > other.x || ((this.x == other.x) && (this.y > other.y))

Note: This method assumes that ordinate values are valid numbers. NaN values are not handled correctly.

Parameters

o	the `Coordinate` with which this `Coordinate` is being compared

Returns: -1, zero, or 1 as this Coordinate is less than, equal to, or greater than the specified Coordinate

References Coordinate.Coordinate(), Coordinate.x, and Coordinate.y.

                                      {
     Coordinate other = (Coordinate) o;

     if (x < other.x) return -1;
     if (x > other.x) return 1;
     if (y < other.y) return -1;
     if (y > other.y) return 1;
     return 0;
   }

◆ copy()

Coordinate copy ( )

Creates a copy of this Coordinate.

Returns: a copy of this coordinate.

References Coordinate.Coordinate().

                            {
     return new Coordinate(this);
   }

◆ distance()

double distance ( Coordinate c )

Computes the 2-dimensional Euclidean distance to another location.

The Z-ordinate is ignored.

Parameters

c a point

Returns: the 2-dimensional Euclidean distance between the locations

References Coordinate.x, and Coordinate.y.

Referenced by LocatePoint.compute(), LocatePoint.pointAlongSegment(), and LongestLine.relation().

                                        {
     double dx = x - c.x;
     double dy = y - c.y;
     return Math.sqrt(dx * dx + dy * dy);
   }

◆ distance3D()

double distance3D ( Coordinate c )

Computes the 3-dimensional Euclidean distance to another location.

Parameters

c	a coordinate

Returns: the 3-dimensional Euclidean distance between the locations

References Coordinate.getZ(), Coordinate.x, and Coordinate.y.

                                          {
     double dx = x - c.x;
     double dy = y - c.y;
     double dz = getZ() - c.getZ();
     return Math.sqrt(dx * dx + dy * dy + dz * dz);
   }

◆ equalInZ()

boolean equalInZ	(	Coordinate	c,
		double	tolerance
	)

Tests if another coordinate has the same value for Z, within a tolerance.

Parameters

c	a coordinate
tolerance	the tolerance value

Returns: true if the Z ordinates are within the given tolerance

References Coordinate.getZ().

                                                          {
     return NumberUtil.equalsWithTolerance(this.getZ(), c.getZ(), tolerance);
   }

◆ equals()

boolean equals ( Object other )

Returns true if other has the same values for the x and y ordinates.

Since Coordinates are 2.5D, this routine ignores the z value when making the comparison.

Parameters

other a Coordinate with which to do the comparison.

Returns: true if other is a Coordinate with the same values for the x and y ordinates.

References Coordinate.equals2D().

                                       {
     if (!(other instanceof Coordinate)) {
       return false;
     }
     return equals2D((Coordinate) other);
   }

◆ equals2D() [1/2]

boolean equals2D ( Coordinate other )

Returns whether the planar projections of the two Coordinates are equal.

Parameters

other a Coordinate with which to do the 2D comparison.

Returns: true if the x- and y-coordinates are equal; the z-coordinates do not have to be equal.

References Coordinate.x, and Coordinate.y.

Referenced by Coordinate.equals().

                                             {
     if (x != other.x) {
       return false;
     }
     if (y != other.y) {
       return false;
     }
     return true;
   }

◆ equals2D() [2/2]

boolean equals2D	(	Coordinate	c,
		double	tolerance
	)

Tests if another Coordinate has the same values for the X and Y ordinates, within a specified tolerance value.

The Z ordinate is ignored.

Parameters

c	a `Coordinate` with which to do the 2D comparison.
tolerance	the tolerance value to use

Returns: true if other is a Coordinate with the same values for X and Y.

References Coordinate.x, and Coordinate.y.

                                                          {
     if (! NumberUtil.equalsWithTolerance(this.x, c.x, tolerance)) {
       return false;
     }
     if (! NumberUtil.equalsWithTolerance(this.y, c.y, tolerance)) {
       return false;
     }
     return true;
   }

◆ equals3D()

boolean equals3D ( Coordinate other )

Tests if another coordinate has the same values for the X, Y and Z ordinates.

Parameters

other a Coordinate with which to do the 3D comparison.

Returns: true if other is a Coordinate with the same values for X, Y and Z.

References Coordinate.getZ(), Coordinate.x, and Coordinate.y.

                                             {
     return (x == other.x) && (y == other.y) &&
                ((getZ() == other.getZ()) ||
                (Double.isNaN(getZ()) && Double.isNaN(other.getZ())));
   }

◆ getM()

double getM ( )

Retrieves the value of the measure, if present.

If no measure value is present returns NaN.

Returns: the value of the measure, or NaN

Referenced by TWKBWriter.ExtendedPrecisionWriter.checkCoordinate(), Zmflag.operation(), and TWKBWriter.write().

                        {
     return Double.NaN;
   }

◆ getOrdinate()

double getOrdinate ( int ordinateIndex )

Gets the ordinate value for the given index.

The base implementation supports values for the index are X, Y, and Z.

Parameters

ordinateIndex the ordinate index

Returns: the value of the ordinate

Exceptions

IllegalArgumentException if the index is not valid

References Coordinate.getZ(), Coordinate.X, Coordinate.x, Coordinate.Y, Coordinate.y, and Coordinate.Z.

   {
     switch (ordinateIndex) {
     case X: return x;
     case Y: return y;
     case Z: return getZ(); // sure to delegate to subclass rather than offer direct field access
     }
     throw new IllegalArgumentException("Invalid ordinate index: " + ordinateIndex);
   }

◆ getT()

Date getT ( )

References Coordinate.t.

                      {
       return t;
   }

◆ getX()

double getX ( )

Retrieves the value of the X ordinate.

Returns: the value of the X ordinate

References Coordinate.x.

Referenced by TWKBWriter.PrecisionWriter.checkCoordinate().

                        {
     return x;
   }

◆ getY()

double getY ( )

Retrieves the value of the Y ordinate.

Returns: the value of the Y ordinate

References Coordinate.y.

Referenced by TWKBWriter.PrecisionWriter.checkCoordinate().

                        {
       return y;
   }

◆ getZ()

double getZ ( )

Retrieves the value of the Z ordinate, if present.

If no Z value is present returns NaN.

Returns: the value of the Z ordinate, or NaN

References Coordinate.z.

Referenced by TWKBWriter.ExtendedPrecisionWriter.checkCoordinate(), Coordinate.DimensionalComparator.compare(), Coordinate.Coordinate(), Coordinate.distance3D(), Coordinate.equalInZ(), Coordinate.equals3D(), Coordinate.getOrdinate(), Zmflag.operation(), Coordinate.setCoordinate(), Coordinate.toString(), and TWKBWriter.write().

                        {
       return z;
   }

◆ hashCode() [1/2]

int hashCode ( )

Gets a hashcode for this coordinate.

Returns: a hashcode for this coordinate

                         {
     //Algorithm from Effective Java by Joshua Bloch [Jon Aquino]
     int result = 17;
     result = 37 * result + hashCode(x);
     result = 37 * result + hashCode(y);
     return result;
   }

◆ hashCode() [2/2]

static int hashCode ( double x )

static

Computes a hash code for a double value, using the algorithm from Joshua Bloch's book Effective Java"

Parameters

x	the value to compute for

Returns: a hashcode for x

                                        {
     long f = Double.doubleToLongBits(x);
     return (int)(f^(f>>>32));
   }

◆ setCoordinate()

void setCoordinate ( Coordinate other )

Sets this Coordinates (x,y,z) values to that of other.

Parameters

other the Coordinate to copy

References Coordinate.getZ(), Coordinate.x, and Coordinate.y.

                                               {
     x = other.x;
     y = other.y;
     z = other.getZ();
   }

◆ setM()

void setM ( double m )

Sets the measure value, if supported.

Parameters

m	the value to set as M

Referenced by TWKBReader.ExtendedPrecisionReader.readPoint(), and TWKBReader.ExtendedPrecisionReader.readPointArray().

                              {
     throw new IllegalArgumentException("Invalid ordinate index: " + M);
   }

◆ setOrdinate()

void setOrdinate	(	int	ordinateIndex,
		double	value
	)

Sets the ordinate for the given index to a given value.

The base implementation supported values for the index are X, Y, and Z.

Parameters

ordinateIndex	the ordinate index
value	the value to set

Exceptions

IllegalArgumentException if the index is not valid

References Coordinate.setZ(), Coordinate.X, Coordinate.Y, and Coordinate.Z.

   {
     switch (ordinateIndex) {
       case X:
         x = value;
         break;
       case Y:
         y = value;
         break;
       case Z:
         setZ(value); // delegate to subclass rather than offer direct field access
         break;
       default:
         throw new IllegalArgumentException("Invalid ordinate index: " + ordinateIndex);
     }
   }

◆ setT() [1/2]

void setT ( Date t )

References Coordinate.t.

                            {
             this.t = t;
   }

◆ setT() [2/2]

void setT ( Long t )

                            {
             this.t = new Date(t);
 }

◆ setX()

void setX ( double x )

Sets the X ordinate value.

Parameters

x	the value to set as X

References Coordinate.x.

                              {
     this.x = x;
   }

◆ setY()

void setY ( double y )

Sets the Y ordinate value.

Parameters

y	the value to set as Y

References Coordinate.y.

                              {
     this.y = y;
   }

◆ setZ()

void setZ ( double z )

Sets the Z ordinate value.

Parameters

z	the value to set as Z

References Coordinate.z.

Referenced by TWKBReader.ExtendedPrecisionReader.readPoint(), TWKBReader.ExtendedPrecisionReader.readPointArray(), and Coordinate.setOrdinate().

                              {
     this.z = z;
   }

◆ toString()

String toString ( )

Returns a String of the form (x,y,z) .

Returns: a String of the form (x,y,z)

References Coordinate.getZ().

Referenced by AsOSMLink.operation().

                            {
     return "(" + x + ", " + y + ", " + getZ() + ")";
   }

Member Data Documentation

◆ M

final int M = 3

static

Standard ordinate index value for, where M is 3.

This constant assumes XYZM coordinate sequence definition, please check this assumption using getDimension() and getMeasures() before use.

◆ NULL_ORDINATE

final double NULL_ORDINATE = Double.NaN

static

The value used to indicate a null or missing ordinate value.

In particular, used for the value of ordinates for dimensions greater than the defined dimension of a coordinate.

Referenced by Coordinate.Coordinate().

◆ serialVersionUID

final long serialVersionUID = 6683108902428366910L

staticprivate

◆ T

final int T = 4

static

Standard ordinate index value for, where Y is 1.

◆ t

Date t =null

Referenced by Coordinate.getT(), and Coordinate.setT().

◆ X

final int X = 0

static

Standard ordinate index value for, where X is 0.

Referenced by Coordinate.getOrdinate(), and Coordinate.setOrdinate().

◆ x

double x

The x-ordinate.

Referenced by RasterToWorldCoordX.attribute(), WorldToRasterCoordX.attribute(), Coordinate.DimensionalComparator.compare(), Coordinate.compareTo(), Coordinate.Coordinate(), Coordinate.distance(), Coordinate.distance3D(), Coordinate.equals2D(), Coordinate.equals3D(), GeometricMedian.getGeoMedian(), Coordinate.getOrdinate(), Coordinate.getX(), IsConvex.isConvex(), LineLength3D.length3D(), AsOSMLink.operation(), LocatePoint.pointAlongSegment(), LocatePoint.pointAlongSegmentByFraction(), Coordinate.setCoordinate(), and Coordinate.setX().

◆ Y

final int Y = 1

static

Standard ordinate index value for, where Y is 1.

Referenced by Coordinate.getOrdinate(), and Coordinate.setOrdinate().

◆ y

double y

The y-ordinate.

Referenced by RasterToWorldCoordY.attribute(), WorldToRasterCoordY.attribute(), Coordinate.DimensionalComparator.compare(), Coordinate.compareTo(), Coordinate.Coordinate(), Coordinate.distance(), Coordinate.distance3D(), Coordinate.equals2D(), Coordinate.equals3D(), GeometricMedian.getGeoMedian(), Coordinate.getOrdinate(), Coordinate.getY(), IsConvex.isConvex(), LineLength3D.length3D(), AsOSMLink.operation(), LocatePoint.pointAlongSegment(), LocatePoint.pointAlongSegmentByFraction(), Coordinate.setCoordinate(), and Coordinate.setY().

◆ Z

final int Z = 2

static

Standard ordinate index value for, where Z is 2.

This constant assumes XYZM coordinate sequence definition, please check this assumption using getDimension() and getMeasures() before use.

Referenced by Coordinate.getOrdinate(), and Coordinate.setOrdinate().

◆ z

double z

The z-ordinate.

Direct access to this field is discouraged; use getZ().

Referenced by Coordinate.Coordinate(), Coordinate.getZ(), LineLength3D.length3D(), and Coordinate.setZ().

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Coordinate() [1/4]

◆ Coordinate() [2/4]

◆ Coordinate() [3/4]

◆ Coordinate() [4/4]

Member Function Documentation

◆ clone()

◆ compareTo()

◆ copy()

◆ distance()

◆ distance3D()

◆ equalInZ()

◆ equals()

◆ equals2D() [1/2]

◆ equals2D() [2/2]

◆ equals3D()

◆ getM()

◆ getOrdinate()

◆ getT()

◆ getX()

◆ getY()

◆ getZ()

◆ hashCode() [1/2]

◆ hashCode() [2/2]

◆ setCoordinate()

◆ setM()

◆ setOrdinate()

◆ setT() [1/2]

◆ setT() [2/2]

◆ setX()

◆ setY()

◆ setZ()

◆ toString()

Member Data Documentation

◆ M

◆ NULL_ORDINATE

◆ serialVersionUID

◆ T

◆ t

◆ X

◆ x

◆ Y

◆ y

◆ Z

◆ z
